SAWA Pump offers a wide range of pumps with the highest level of hygienic standards including centrifugal, multi-stage centrifugal, rotary gear, self-priming liquid ring, rotary gear and peripheral pumps.
All pumps are capable of being magnetically driven with no seal. This is ideal for personal care pharmaceutical and food applications where the highest levels of hygienic design and even aseptic design is required.
Self-Priming Centrifugal Pumps
| Flow rate: | up to 70 m3/h |
| Delivery head: | up to 43 m |
| Temperature range: | -30 to 130 °C |
| Viscosity: | max. 500 mPas |
| Nominal pressure: | max. PN 10 |
| Surface roughness: | down to Ra < 0.4 μm |
| ATEX for zonen: | 1 and 2 |
| Heating/Cooling: | yes |
| Magnetic coupling: | yes |
The self-priming pump type HD impresses with its excellent priming capability (up to 7 m) and an excellent conveying behavior with liquids containing gas. Because of its robust design the maintenance costs are very low and the lifetime is long. The design of the pump guarantees a gentle and silent pumping of different liquids. The sanitary design and the material 1.4435 makes the pump easy to clean. That’s why the pump is often used in the beverage, food and pharmaceutical industries.
| Flow rate: | up to 240 m3/h |
| Delivery head: | up to 90 m |
| Temperature range: | -30 to 130 °C |
| Viscosity: | max. 500 mPas |
| Nominal pressure: | max. PN 10 |
| Surface roughness: | down to Ra < 0.4 μm |
| ATEX for zonen: | 1 and 2 |
| Heating/Cooling: | yes |
| Magnetic coupling: | yes |
Standard Centrifugal Pumps

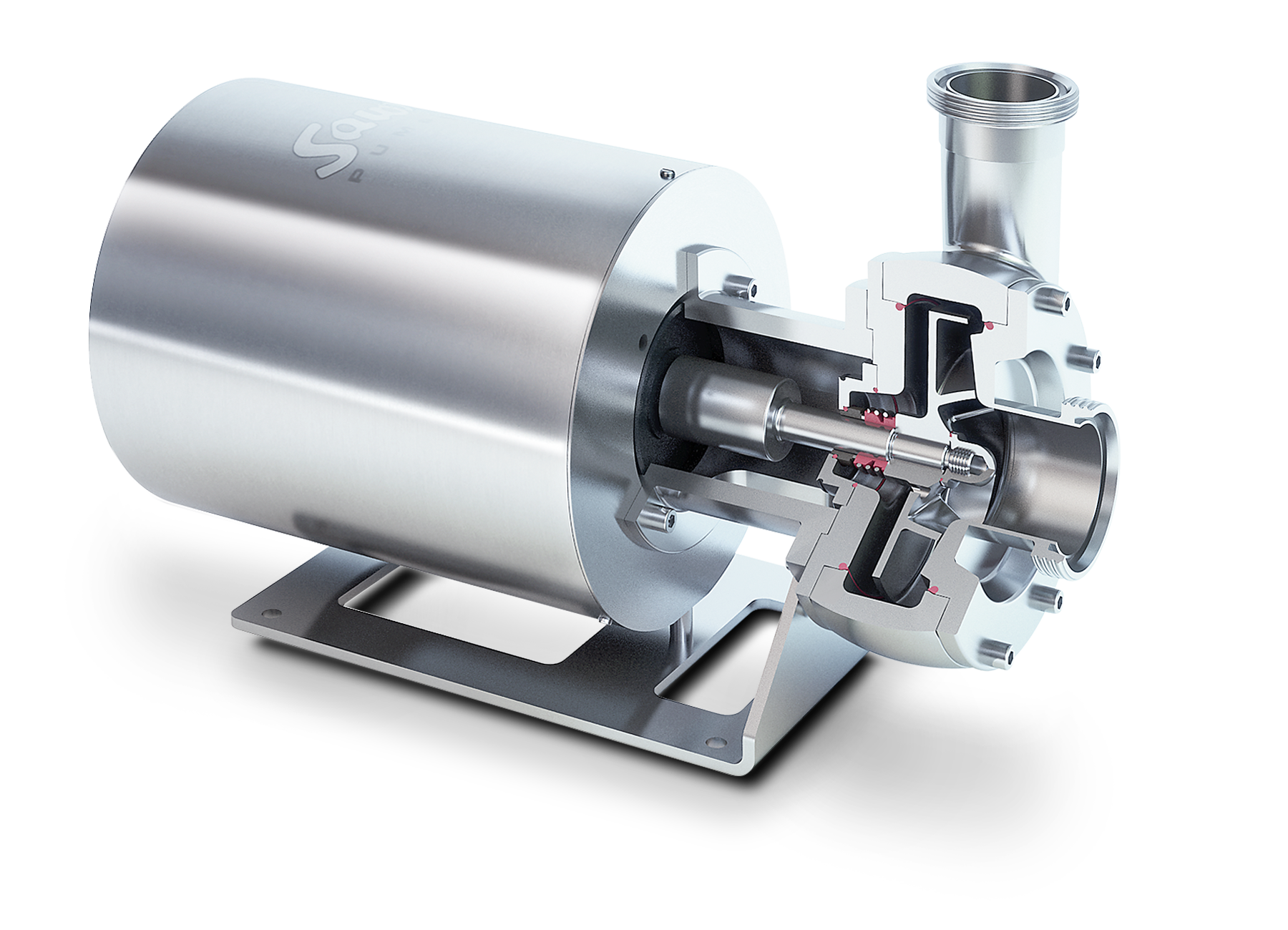

The normal-priming SAWA centrifugal pump LE convinces through its silent operation and its optimised fluid-dynamics design. The pump is CIP and SIP compliant and is therefore quickly cleaned. The SAWA centrifugal pump LE is often used in the beverage, food and pharmaceutical industry. The robust execution makes it possible to pump solids-laden and abrasiv liquids.
High Pressure (Single Stage) Centrifugal Pumps
10
| Flow rate: | up to 100 m3/h |
| Delivery head: | up to 100 m |
| Temperature range: | -30 to 130 °C |
| Viscosity: | max. 500 mPas |
| Nominal pressure: | max. PN 100 |
| Surface roughness: | down to Ra < 0.4 μm |
| ATEX for zonen: | 1 and 2 |
| Heating/Cooling: | yes |
| Magnetic coupling: | yes |
Because of its specially designed impeller, the SAWA centrifugal pump ZAL is capable to reach delivery heads up to 10 bar with a single stage. This characteristic is often used for cleaning applications with spray balls. An advantage of the single stage pump against a multi stage pump is the better drainability which is of importance in many applications in the pharmaceutical industry. The SAWA centrifugal pump typ ZA is designed for higher flow rates and is also made of stainless steel 1.4435. The pump is predestined to be used in sanitary and sterile applications.
Hybrid Centrifugal Pumps (with Inducer)
| Flow rate: | up to 100 m3/h |
| Delivery head: | up to 70 m |
| Temperature range: | -30 to 130 °C |
| Viscosity: | max. 200 mPas |
| Nominal pressure: | max. PN 63 |
| Surface roughness: | down to Ra < 0.4 μm |
| ATEX for zonen: | 1 and 2 |
| Heating/Cooling: | no |
| Magnetic coupling: | yes |
The SAWA hybrid centrifugal pump LES has a better suction capabilty compared to a normal centrifugal pump. Through its special designed recirculation system in the pump cover the pump can be an alternative to a self-priming pump. Especially for CIP-retrun applications or for the unloading of tank trucks, a SAWA hybrid centrifugal pump is an interesting solution.
| Flow rate: | up to 100 m3/h |
| Delivery head: | up to 50 m |
| Temperature range: | -30 to 100 °C |
| Viscosity: | max. 200 mPas |
| Nominal pressure: | max. PN 10 |
| Surface roughness: | N/A |
| ATEX for zonen: | 1 and 2 |
| Heating/Cooling: | no |
| Magnetic coupling: | no |
Submersible Centrifugal Pumps
The SAWA submersible centrifugal pump with motor in dry well installation is available for a submersion depths up to 3 m. It is manufactured out of corrosion resistent stainless steel. The pumps are made according to the customers’s requirements and are ideal for application with solvents, industrial waste water, alcohol and chemicals. A bearing free version is available for submersion depths up to 0.6 m. This guarantees a long lifetime e.g. with abrasive liquids.
Peripheral Single Gear Pump
| Flow rate: | up to 7 m3/h |
| Delivery head: | up to 100 m |
| Temperature range: | -30 to 200 °C |
| Viscosity: | max. 150 mPas |
| Nominal pressure: | max. PN 63 |
| Surface roughness: | down to Ra < 0.4 μm |
| ATEX for zonen: | 1 and 2 |
| Heating/Cooling: | no |
| Magnetic coupling: | yes |
| Flow rate: | up to 9 m3/h |
| Delivery head: | up to 100 m |
| Temperature range: | -30 to 200 °C |
| Viscosity: | max. 3000 mPas |
| Nominal pressure: | max. PN 16 |
| Surface roughness: | N/A |
| ATEX for zonen: | 1 and 2 |
| Heating/Cooling: | no |
| Magnetic coupling: | yes |
Twin Gear Pumps
The SAWA gear pumps are suitable for the use with good lubricating liquids such as oils, fats and molasses. The robust execution of the gear pumps guarantees long life cycles and a small wear of the parts. Delivery heads up to 10 bar can be reached.
